PCD & PCBN Grooving Tools

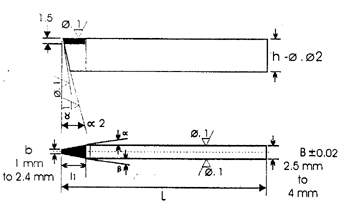

| Brazed Type | |
|---|---|
|
|

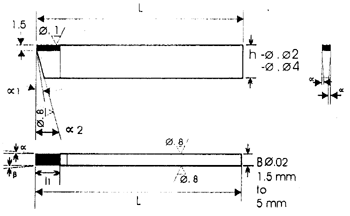

| Insert Type | |||
|---|---|---|---|
|
|
|
|
|
|
|
|
| Microbore Cartridges | |
|---|---|
|
|
T = Tool Point offset is on the Right of centre of cartridge
Microbore No.
M1 A2
M1 B2
M2 A2
M2 B2
M3 A2
M5 A2
M5 B2
M7 A2
M7 B2
M.Min Bore
16.1
13.4
21.1
18.8
26.1
41.4
35.8
58.8
53.3
Length
14.2
11.4
19.9
16.8
25.5
39.8
33.4
55.7
49.3
T
0.4
0.4
0.4
0.4
0.8
1.2
1.2
1.6
1.6
Note:
All dimension in MM
12° top rake can be used for Aluminium
All Specifications subject to change without notice
All left hand cartridges will have same tool Geomentry
While ordering please specify PCD or CBN
Note:
1. Other tool nose radius on request.
2. Other tool dimensions on request.
3. R – Right hand cutting; L – Left hand cutting (Please specify ordering).
4. Other cutting edge width available on request.
5. Please specify PCD / PCBN while ordering.
