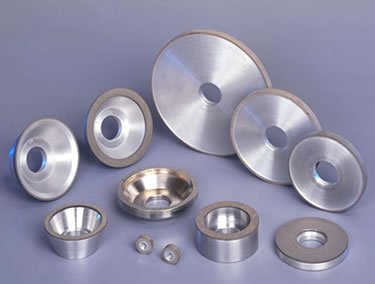

Balaji Diamond & Cbn Wheels are manufactured of superior quality and available in Resin, Metal Vitrified Bonds and Electrometallic bonds. They are used for grinding carbides, glass, ceramics, ferrites and other hard and abrasive materials. These are available in diameters ranging from 3.0 mm to 600 mm. Bond type, grit size and concentration are selected to ensure maximum wheel performance according to the application.
Standard Type Of Diamond & CBN Grinding Wheels

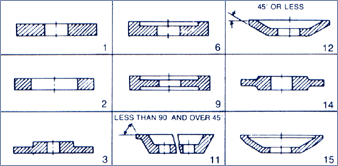

BASIC CORE SHAPES

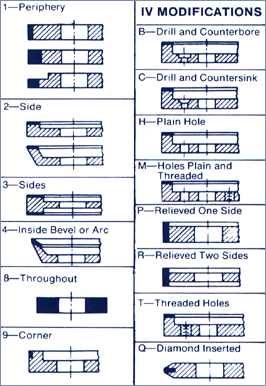

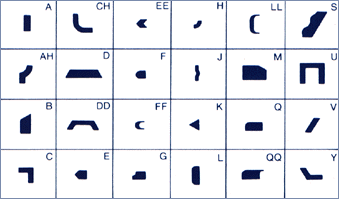

SHAPES OF ABRASIVE CROSS SECTION
LOCATIONS OF ABRASIVE SECTION
1 A1R

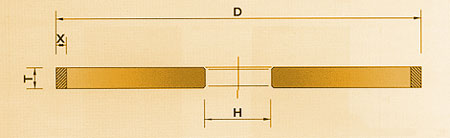

1A1

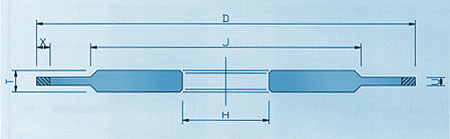

14A1

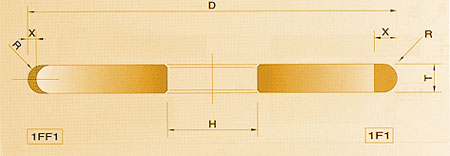

1FF1 / 1F1

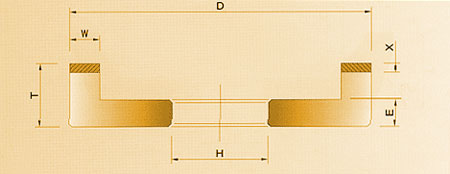

6A2

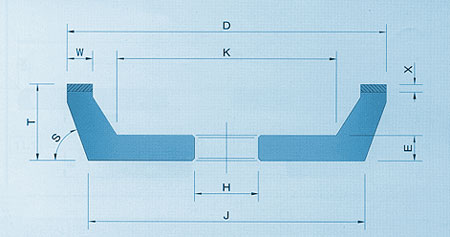

11A2

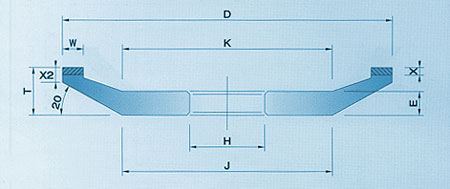

12A2 - 20o

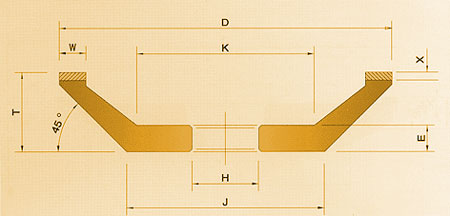

12A2 - 45o

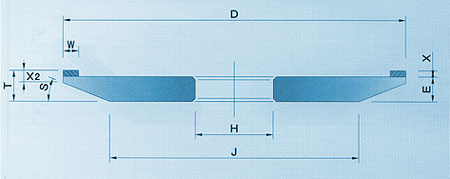

4A2

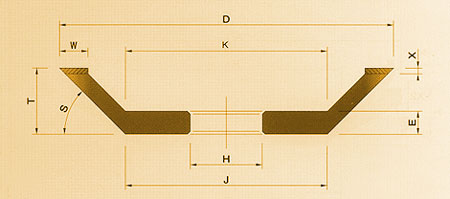

12V2
11V9

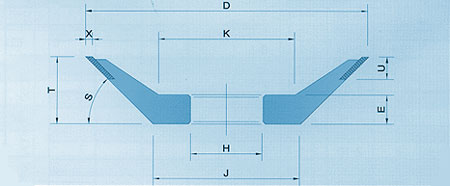

12V9

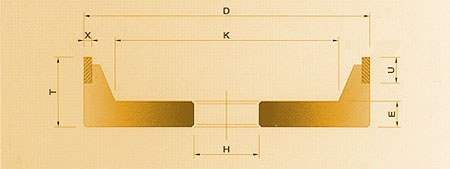

6A9

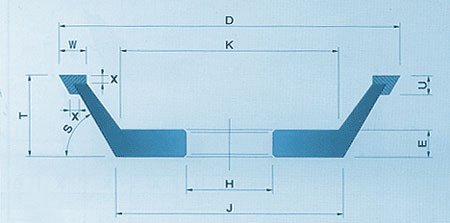

11E9

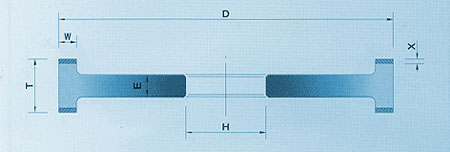

9A3
14U1

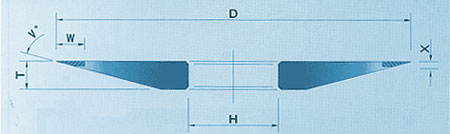

4B2

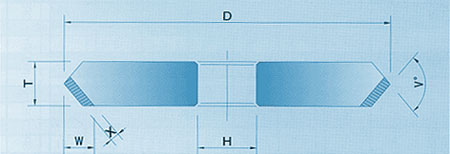

1B5

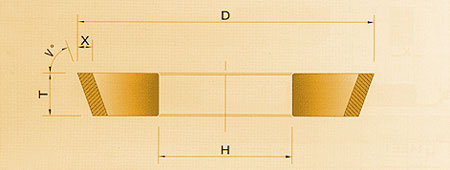

1V1

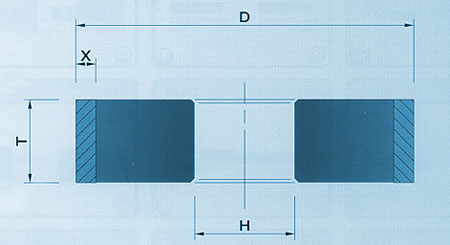

1A8
DW

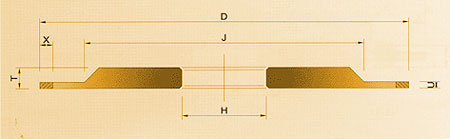

3A1
1L1/1Q1
12V5

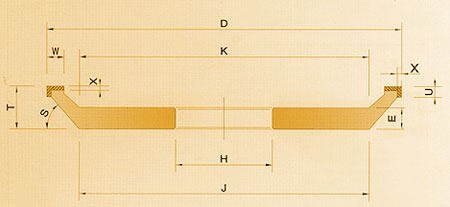

12C9/11C9

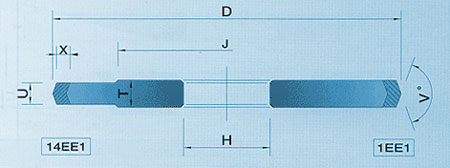

14EE1/1EE1
Electro Deposited Wheels
Balaji Electro Deposited Wheels are used for cutting and grinding various materials such as tungsten carbide, ceramics, glass, ferrites, synthetic stones and other construction materials such as glazed tiles etc. available in various sizes upto 600 mm dia. These cut-off wheels can also be used for cutting high density carbons, fibre glass, glass reinforced plastics, hard rubbers and hard plastics.
