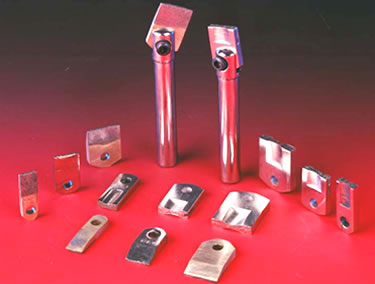

Blade Type Diamond Dressers
Application :
Balaji Blade Type Diamond Dressers are specially recommended for Angular and centreless grinders. If desired available with swiveling holder or with diamond abrasive plate brazed in a shank.
Advantages :
- Whole non-crushed natural grains very uniformly disposed in a special pattern.
- Hand-set for confirming to very close tolerances on the work piece more particularly for truing and forming of profiles.
- Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed.
- Complete use without maintenance.
- Reduced inventory.
| F - TYPE | |||
|---|---|---|---|
| FA | Blade Dimensions | ||
|
FA-090 FA-110 FA-140 FA-GRIT |
|
|
20 x15 x X DIMENSIONS OF THE DIAMOND PLATE 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| FB | |||
|
FB-075 FB-090 FB- 110 FB-140 FB GRIT |
|
|
10 x 15 x X DIMENSIONS OF THE DIAMOND PLATE 0.75 mm 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| FC | |||
|
FC-090 FC- 110 FC-140 FC-GRIT |
|
|
15 x 10 x X DIMENSIONS OF THE DIAMOND PLATE 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| FD | |||
|
FD-075 FD-090 FD-110 FD-140 FD GRIT |
|
|
10 x 10 x X DIMENSIONS OF THE DIAMOND PLATE 0.75 mm 0 .90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |

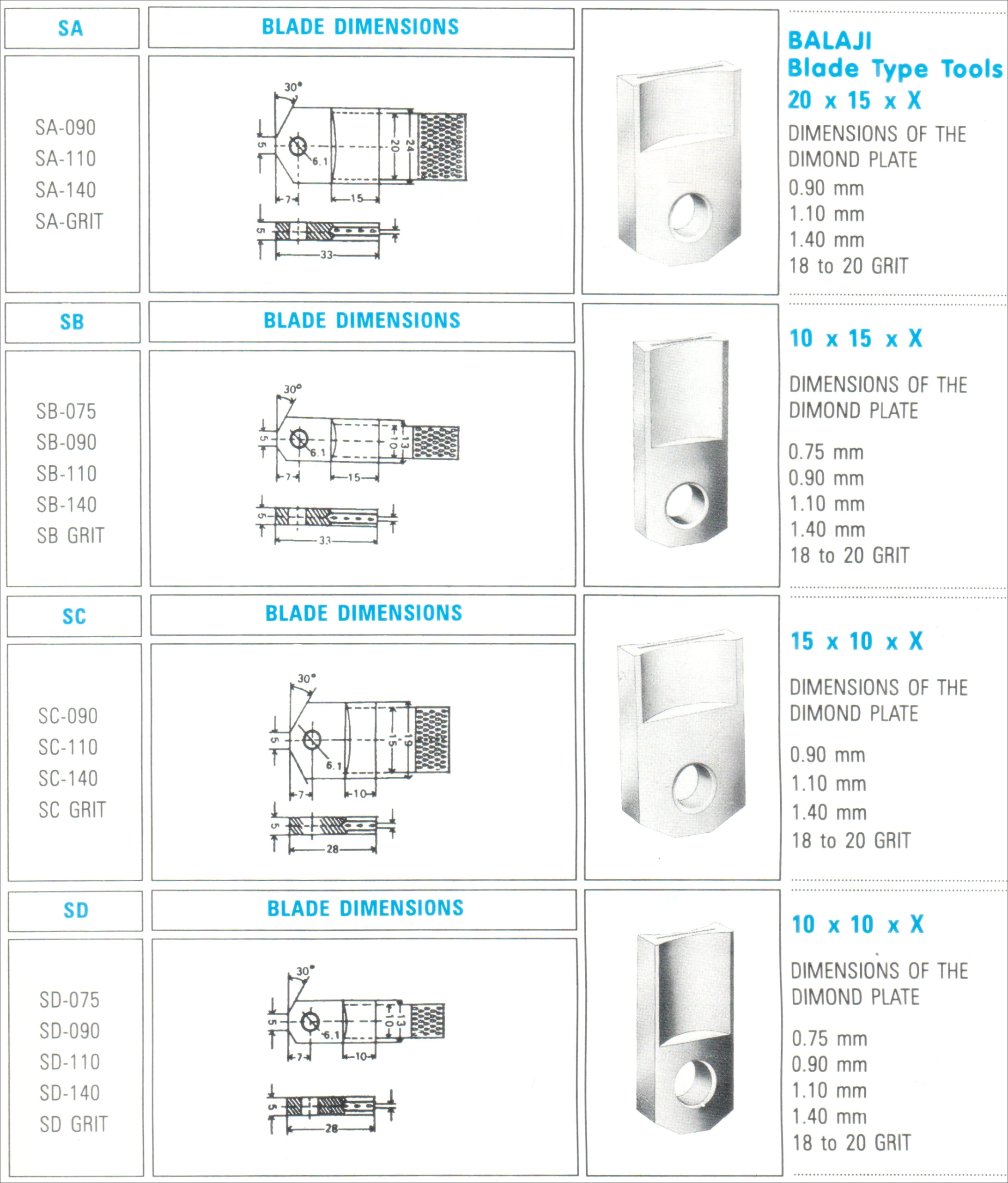

| S - TYPE | |||
|---|---|---|---|
| SA | Blade Dimensions | ||
|
SA-090 SA-110 SA-140 SA-GRIT |
|
|
20 x15 x X DIMENSIONS OF THE DIAMOND PLATE 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| SB | |||
|
SB-075 SB-090 SB- 110 SB-140 SB GRIT |
|
|
10 x 15 x X DIMENSIONS OF THE DIAMOND PLATE 0.75 mm 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| SC | |||
|
SC-090 SC- 110 SC-140 SC-GRIT |
|
|
15 x 10 x X DIMENSIONS OF THE DIAMOND PLATE 0.90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
| SD | |||
|
SD-075 SD-090 SD- 110 SD-140 SD GRIT |
|
|
10 x 10 x X DIMENSIONS OF THE DIAMOND PLATE 0.75 mm 0 .90 mm 1.10 mm 1.40 mm 18 to 20 GRIT |
Brazed Type
| Cylind-erical shank with blade | L approx | Cylind-erical shank with blade | L approx |
|---|---|---|---|
| FA SA | 22 | FA SA | 22 |
| FB SB | 22 | FB SB | 22 |
| FC SC | 17 | FC SC | 17 |
| FD SD | 17 | FD SD | 17 |
| angle œ L1 and Shank-diameter according to stated requirements | |||
| Shank MT1 with blade | L approx |
|---|---|
| FA SA | 37 |
| FB SB | 37 |
| FC SC | 32 |
| FD SD | 32 |
| Shank MT1 with blade | L approx | Shank MT0 with blade | L approx |
|---|---|---|---|
| FA SA | 23 | FA SA | 25 |
| FB SB | 23 | FB SB | 25 |
| FC SC | 18 | FC SC | 20 |
| FD SD | 18 | FD SD | 20 |
| angle œ according to stated requirements | |||
|
Cylindri- cal shank with blade |
L approx |
|---|---|
| FA SA | 37 |
| FB SB | 37 |
| FC SC | 32 |
| FD SD | 32 |
| L1 and Shank-diameter according to stated requirements | |
| Shank MT1 with blade | L approx | Shank MT0 with blade | L approx |
|---|---|---|---|
| FA SA | 23 | FA SA | 25 |
| FB SB | 23 | FB SB | 25 |
| FC SC | 18 | FC SC | 20 |
| FD SD | 18 | FD SD | 20 |
| angle œ L1 and Shank-diameter according to stated requirements | |||
| Shank MT0 with blade | L approx |
|---|---|
| FA SA | 39.5 |
| FB SB | 39.5 |
| FC SC | 34.5 |
| FD SD | 34.5 |
| L1 and Shank-diameter according to stated requirements | |
